Polarization of Br2 molecule in vanadium oxide cluster cavity and new alkane bromination

A hemispherical vanadium oxide cluster has a cavity that can accommodate a bromine molecule. It was found that a bromine molecule trapped in the cavity was polarized and that an alkane molecule like pentane, butane and propane could be brominated with the bromine molecule in the cavity with a selectivity differing from ordinary bromination. The present findings are expected to be useful for polarization of small molecules and design of highly functional catalysts.

Alkanes are major constituents of natural gas and oil, consisting of carbon and hydrogen atoms only. The C-H bonds of alkanes are chemically stable with low reactivity. Technologies that enable selective functionalization*1) of alkanes for converting alkanes into useful raw materials for chemical products such as alcohols and bromoalkanes are eagerly sought for development of both basic chemical sciences and industries. The bromine molecule (Br2) is widely used for bromination of a variety of organic compounds, where bromination reactions take place via a radical mechanism*2). To attain product selectivity different from that of the radical mechanism, control of electron states of bromine molecule is needed.

Vanadium oxide clusters*3) are a group of materials with various structures that are expected to be useful as functional materials. A hemispherical vanadium oxide cluster having a cavity corresponding to the size of one halogen atom shows special charge distribution where the periphery of the cavity is relatively negatively charged while the inside is relatively positively charged. Although this compound has a large negative charge, it offers stable accommodation of a compound with a negative charge or with functional groups in its cavity. Prof. Yuji Kikukawa of Kanazawa University previously revealed that the hemispherical vanadium oxide cluster took on a bulged structure in the presence of another compound being trapped in the cavity, whereas the structure was collapsed in the absence of a compound in the cavity (Angewandte Chemie, International Edition, 2018, 57, 16051-16055).


In the present study led by a research group of Profs. Yuji Kikukawa and Yoshihito Hayashi of Kanazawa University in collaboration with scientists from Ritsumeikan University and High Energy Accelerator Research Organization, it was revealed that a bromine molecule can be stabilized in the cavity of a hemispherical vanadium oxide cluster. In the infrared spectrum, an absorption peak at 185 cm-1 originating from polarization*4) of the bromine molecule trapped in the cavity was observed, although a bromine molecule without polarization would not show such a peak. This is the first spectral observation of the polarized bromine molecule. By analyzing extended X-ray absorption fine structure measurements of the bromine molecule performed at Photon Factory, High Energy Accelerator Research Organization (KEK), a Br‒Br distance of 0.233 nm was suggested, slightly longer than that of 0.228 nm in gas-phase bromine molecules.

By using such a polarized and activated bromine molecule in the cavity of the vanadium oxide cluster, bromination of pentane yielded 2-bromopentane and 3-bromopentane in a ratio of 36:64, which differs from the ratio of 80:20 when bromination was carried out in the absence of vanadium oxide cluster, indicating different selectivity. In addition, concerning another product, 2,3-dibromopentane, which consists of diastereomers*5), the ratio of the threo isomer was higher than when bromine molecules alone were reacted with pentane. Furthermore, bromination could take place with smaller alkanes with shorter carbon chain such as butane or propane.

As above, it was found that the bromine molecule trapped in the vanadium oxide cavity showed a specificity different from the radical mechanism for bromination reaction of alkanes.

[Future prospects]

Metal oxide clusters are able to perform oxidization and reduction while maintaining their structure. It is also possible to conjugate with other metal species and to replace some constituent metal atoms with other atoms. Thus, the characteristics of metal oxide clusters can be regulated. Further developments are expected such as the activation of small molecules using such an atomic dimension cavity through controlling charge distribution in the cavity and the production of highly functional catalysts by controlling molecular-level structures. It is also expected that selective functionalization reactions using methane, which is highly inert but whose efficient chemical modification is highly desirable, can be attained by improving materials that regulate the electron states.

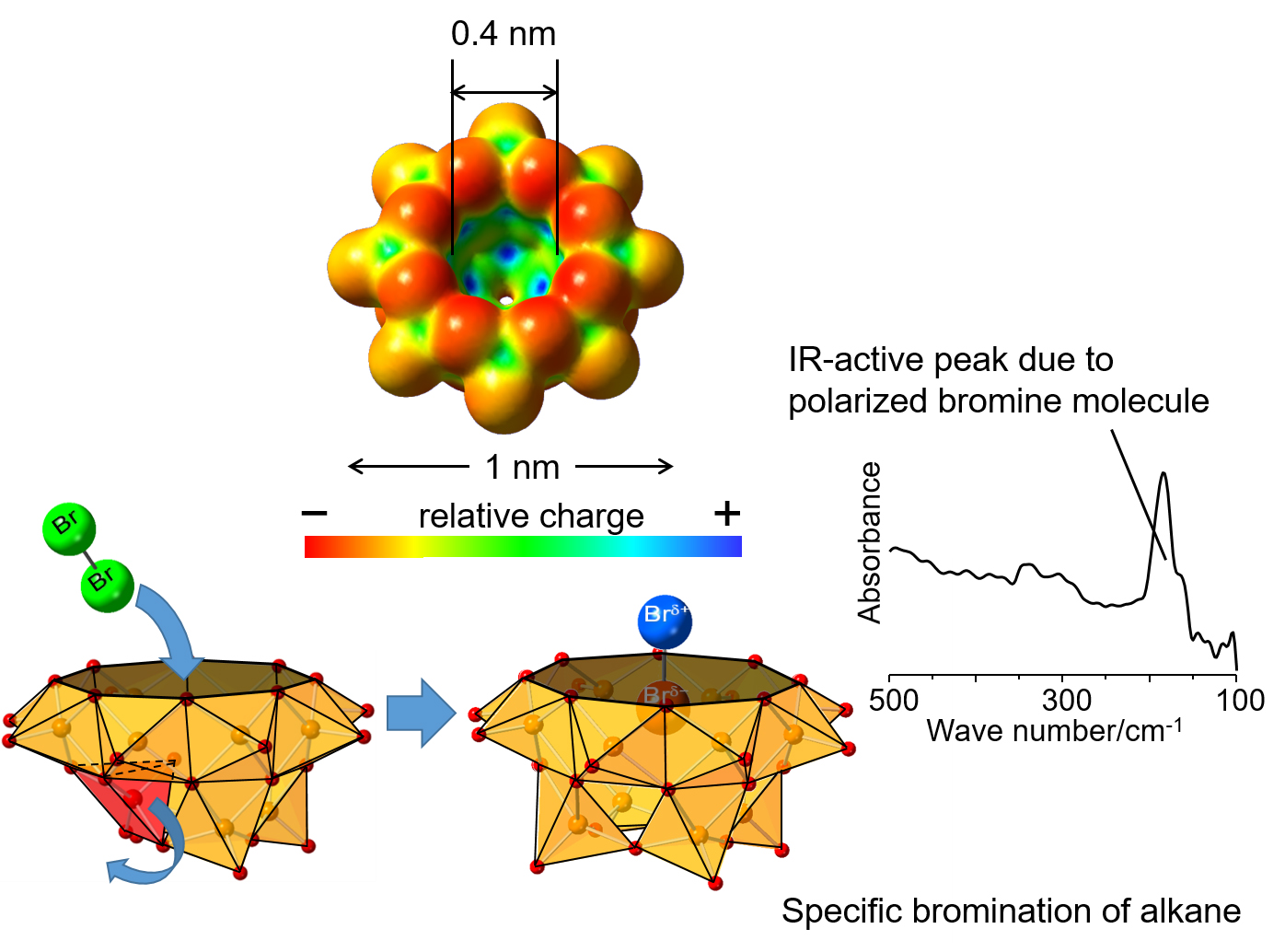

Figure. Peak of the spectrum due to polarized bromine molecule



*1) Functionalization
Atomic groups and bonds that characterize the properties and reactions of organic compounds.

*2) Radical mechanism
A mechanism, among chemical reaction mechanisms, that proceeds with atoms and molecules having unpaired electrons. In the case of bromine, the reaction mechanism in which bromine atoms are involved.

*3) Vanadium oxide cluster
Negatively charged molecular vanadium oxide.

*4) Polarization
A state in which the density of electrons on atoms is not equivalent but is asymmetrically distributed between the two directly bonded atoms.

*5) Diastereomers
Stereoisomers of chemical substances that are not mirror-image isomers (enantiomers). Diastereomers with two adjacent asymmetric carbons are called threo and erythro isomers and are distinguished.


Induced-Fitting and Polarization of Bromine Molecule in an Electrophilic Inorganic Molecular Cavity and Its Bromination Reactivity

Journal:Angewandte Chemie, International Edition

Authors:Yuji KIKUKAWA1), Kensuke SETO1), Daiki WATANABE1), Hiromasa KITAJIMA1), Misaki KATAYAMA2), Shohei YAMASHITA3), Yasuhiro INADA2), Yoshihito HAYASHI1)
1)Kanazawa University, 2)Ritsumeikan University, 3)High Energy Accelerator Research Organization

DOI: 10.1002/anie.202007406

JST PRESTO Grant (No. JPMJPR1655), High Energy Accelerator Research Organization (Proposal No. 2017G713).
