Melatonin is a potential drug for the prevention of bone loss during space flight

Abstract:

Melatonin could be a novel drug for preventing bone loss of astronauts during space flight. Here we used goldfish scales as a bone model of coexisting osteoclasts and osteoblasts and demonstrated that melatonin synthesis decreased under microgravity. Melatonin treatment of scales stimulated expression of Calcitonin, an osteoclast-inhibiting hormone, and decreased expression of an osteoclastogenesis promotor. This is the first study to report the inhibitory effect of melatonin on osteoclast activation, which is cancelled by microgravity.


[Background]
For proper and healthy metabolism of bone, appropriate stimuli are necessary. In outer space with microgravity, calcium is lost from bone and bone mass is reduced. Measurement of the bone density of astronauts before and after a long stay in outer space indicates bone mass loss. At the dawn of an era where astronauts are to stay for a long period of time in an international space station, it is an urgent task to elucidate changes of osteoblasts and osteoclasts under microgravity conditions and to perform research on potential drugs as remedies. Since it is difficult in outer space to use a cell culture system that meets in vivo conditions, other experimental models are necessary.
The present research group, consisting of 53 scientists from 33 institutions, led by scientists of Kanazawa University, Tokyo Medical and Dental University, Okayama University and University of Toyama, used cultured goldfish scales to investigate the mechanism of bone loss in space. A scale contains hydroxyapatite, a fundamental element of bone, and its bone matrix of two layers (osseous layer: a thin, well-calcified external layer; a fibrillary layer: a thick, partially calcified layer). A scale also has cells corresponding to osteoblasts and osteoclasts (Figure 1). Scales protect the surface of the fish body and play a role as a reservoir of calcium. With freshwater fish, the latter function is noteworthy; when salmon swim upstream to lay eggs, it is known that their scales get smaller in order to supply calcium to the eggs. To achieve this, osteoclasts release calcium from the scales. In addition, ground-basis experiments reveal that the responses of scales to hormones and extra-gravity due to centrifugation are very similar to those of mammalian bones. Furthermore, cultured scales may be considered to be an excellent experimental model for research of bone metabolism in outer space since scales are readily available and they can be used for experiments for about 10 days at a low temperature (4ºC) without exchanging culture media.


[Results]
Upon removal of a scale from fish skin, a new scale is regenerated. In this study, regenerated scales were used since their osteoblast and osteoclast activities are high. First it was shown that melatonin*1) was produced in scale osteoblasts and that melatonin synthesis decreased in space due to reduced expression of acetylserotonin O-methyltransferase, an enzyme important in melatonin synthesis (Figure 2a).
Further, melatonin functions in outer space were investigated by comparing scales cultured in a media supplemented with melatonin and those without. This experiment revealed that after a three-day culture in melatonin-free media, a number of osteoclasts fused together to form multinucleated, active osteoclasts. These active osteoclasts widened the grooves of a scale’s osseous layer and enhanced bone resorption of scales. Moreover, the expression level of the Rankl*2) gene, a factor enhancing bone resorption, was elevated while the expression level of the Calcitonin*3) gene, a hormone suppressing bone resorption, was repressed. In contrast, in scales cultured in a media supplemented with melatonin, the expression level of Rankl was found to be repressed while Calcitonin expression was at a normal level, which coincided with suppressed gene expression levels for osteoclast functions (Figures 2b-e).
To our knowledge, no investigations have so far been performed on melatonin levels in outer space. We believe that one of the mechanisms of bone resorption under microgravity conditions could be a decrease of melatonin level to suppress CALCITONIN secretion (Figure 3). In fact, other research groups reported that the blood CALCITONIN level of a monkey decreased in outer space and that the CALCITONIN level in the blood of human subjects decreased after 120 days on a head-down tilt bed rest, a pseudo-microgravity experimental model.
The present research group confirmed in ground-basis experiments that scale osteoblasts produced CALCITONIN and that melatonin enhanced CALCITONIN secretion. Due to the limitation of rocket load, experiments on morphological changes of osteoclasts due to melatonin were not possible in outer space at this time; however, ground-basis experiments indicated suppression of morphological changes of activated osteoclasts by melatonin by using a three-dimensional clinostat, which produces pseudo-microgravity conditions. A research paper with these results was published in a high impact factor journal based on life science experiments performed in the Japanese Experiment Module for the first time.
As above, investigation of melatonin action on bones in outer space, which had been neglected so far, revealed that melatonin suppresses bone resorption by stimulating osteoblasts to secret CALCITONIN (Figure 3).


[Future prospects]
The present study indicates the possibility that melatonin could serve as a prophylactic drug to prevent bone loss of astronauts during their missions. Melatonin is expected to be used as a preventive and curative drug for loss of bones of astronauts in the future. The present research group performs in-space experiments on the functions of new melatonin derivatives on scales, which may lead to drug discovery of bone diseases.







Figure 1. Morphological features of ontogenic and regenerating scales.

(a) A goldfish and a binocular view of an ontogenic scale. Grooves radiate from the center focus. (b) Binocular views of a regenerating scale on day 14 (left) and the same scale stained for TRAP activity, indicated by the red color along the grooves (right). The grooves formed a mesh-like structure at the center of the goldfish scales. (c) Light microscopic views of the surface on the osseous layer of the regenerating goldfish scales cultured for 86 h at 22°C on the ground. TRAP staining (left) and F-actin staining (right) superimposed with DAPI staining of the nuclei. A TRAP-positive multinucleated osteoclast possessed an actin ring along the groove. (d) Schematic illustration of morphological features of goldfish scales. Fish scales can regenerate following scale removal. On the groove edge of the goldfish scales, a multinucleated osteoclast exhibited a well-developed RB and CZs (e). Active cuboidal osteoblasts (f) are observed at the periphery and on the dermis side of the scale. They represent a highly-developed rER and Go. OB, osteoblast; OC, osteoclast; TRAP, tartrate-resistant acid phosphatase; DAPI, 4’, 6-diamidino-2-phenylindole; N, nucleus; RB, ruffled border; CZ, clear zone; rER, rough endoplasmic reticulum; Go, Golgi apparatus. Scale bars = 1 mm in a and b, 10 µm in c, 5 µm in e and f.

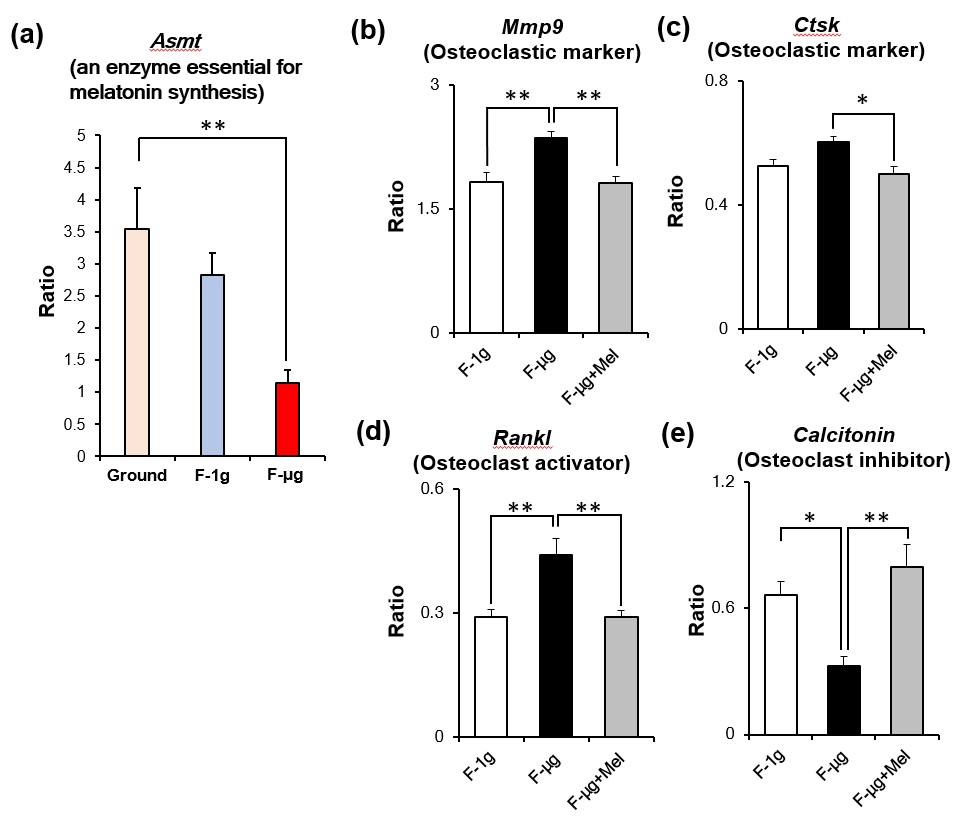

Figure 2. Suppression of scale melatonin-synthesizing enzyme in space flight and osteoclastic markers in melatonin-treated scales.

(a) N-acetylserotonin O-methyltransferase (Asmt) mRNA expression levels in the regenerating scales during space flight in artificial gravity (F-1g) or microgravity (F-µg), and on the ground analyzed using real-time PCR. (b–e) mRNA expression levels of osteoclast-related factors: matrix metalloproteinase-9 (Mmp-9) (b), cathepsin K (Ctsk) (c), receptor activator of nuclear factor κβ ligand (Rankl) (d), and Calcitonin (e). F-1g, flight 1g; F-μg, flight microgravity; F-μg + Mel, F-μg treated with melatonin (1 μM). All targets were standardized to elongation factor 1 alpha expression levels and presented as relative ratios. All data are mean ± SEM (n = 4); *P < 0.05, **P < 0.01.

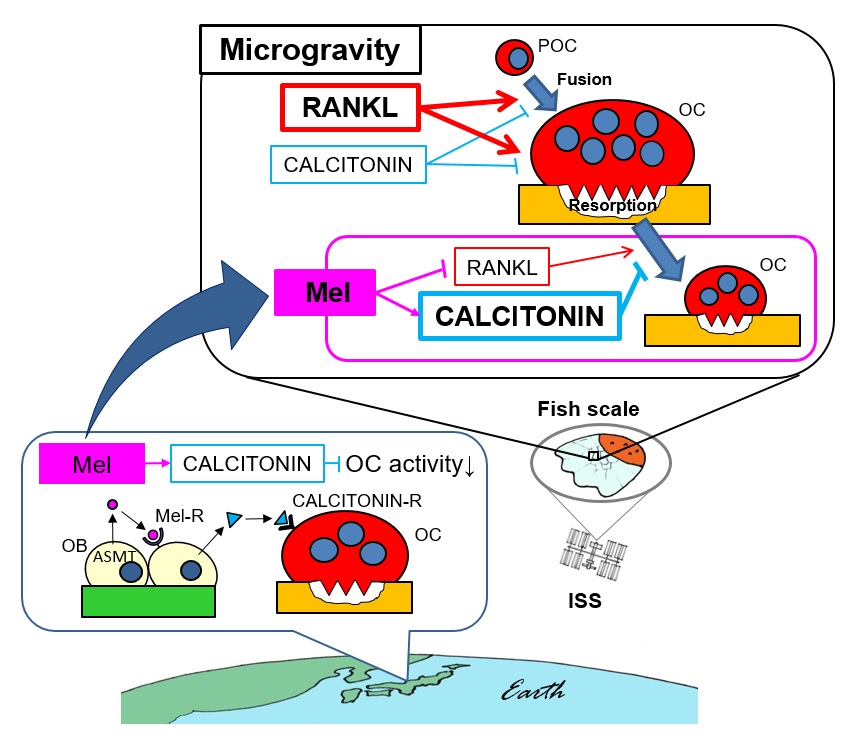

Figure 3. Outline of research results.

Lower frame: We observed the expression of melatonin receptor (Mel-R), melatonin synthesizing enzyme (ASMT), and CALCITONIN (an osteoclast-inhibiting hormone) in osteoblasts in regenerating goldfish scales. Melatonin stimulated CALCITONIN production in the scales, which has also been detected in mammalian bones. The autocrine and paracrine effects of melatonin could stimulate CALCITONIN production in scales, in turn suppressing osteoclast activity. Upper frame: Microgravity during space flight accelerated the multinucleation and resorption activity in scale osteoclasts, which was associated with the stimulated gene expression of Rankl (a major factor for osteoclastogenesis) and the suppressed gene expression of Calcitonin. Melatonin administration maintained the normal gene expression levels of the factors during space flight and suppressed microgravity-stimulated osteoclast activity. The results suggest that melatonin could be used as a prophylactic drug to prevent bone loss in astronauts during space flight. OB, osteoblasts; OC, osteoclasts; POC, preosteoclasts; RANKL, receptor activator of nuclear factor κB ligand; Mel, melatonin; Mel-R, melatonin receptor; CALCITONIN-R, CALCITONIN receptor; ASMT: N-acetylserotonin O-methyltransferase; ISS, the International Space Station.



[Glossary]
*1) Melatonin
Melatonin, N-acetyl-5-methoxytryptamine, is a hormone, an amine compound, secreted during the night. In vivo, it is synthesized from tryptophan via serotonin.
Essential enzymes of melatonin synthesis include arylalkylamine N-acetyltransferase (AANAT) and acetylserotonin O-methyltransferase (ASMT). Melatonin is primarily synthesized in and secreted from the pineal gland but it is known that other organs also produce melatonin. Melatonin is produced in vertebrates, invertebrates, plants and cyanobacteria; it is a hormone existing in a wide range of organisms.

*2) Rankl
Abbreviation of Receptor activator of nuclear factor kappa-B ligand. It is produced in osteoblasts and its binding to RANK (receptor activation of nuclear factor kappa-B) expressed in osteoclasts activates osteoclasts, enhancing bone resorption.

*3) CALCITONIN
CALCITONIN is a peptide hormone consisting of 32 amino acid residues, secreted from parafollicular cells of the thyroid gland of mammals and from the ultimobranchial gland of non-mammalian animals. Its primary action is to suppress osteoclast activities, inhibiting bone resorption. As a result, plasma calcium level is lowered. In the present study, we determined that CALCITONIN is secreted from osteoblasts in the goldfish scales.





Article
Melatonin is a potential drug for the prevention of bone loss during space flight

Journal: Journal of Pineal Research

Authors: Mika IKEGAME+, Atsuhiko HATTORI+, Nobuo SUZUKI*, and 50 other coauthors (+equal contributors, *correspondence author)

DOI: 10.1111/jpi.12594

Funder
Grants-in-Aid from JSPS (24620004 and 18K11016), Grants of JAXA, Kanazawa University CHOZEN project, Kanazawa University grant.
