Robot control system for grasping and releasing objects under both dry and wet conditions

Posted: 2019-7-16
Latest Research News

Abstract:
A control system for deformable robot-fingertips was developed for grasping and releasing objects. Previously developed robot fingertips with high friction texture can stably grasp a paper box, a soft object under both dry and wet conditions. By injecting a lubricant (absolute ethanol) the grasped object slipped downwards without changing the position of the robot fingertips. The current controlling system using lubricant could be applied to robot tasks in a narrow space.


[Background]
Industrial robots are now widely used and are indispensable in car manufacturing and in other fields. Conventional robot hands are suitable for grasping hard objects of fixed form, whereas it is not easy to grasp complicated objects or to gently grasp soft objects. It is also necessary, under various conditions, to respond to physical characteristics of objects such as surface characteristics: dry, wet, etc.

A soft-surfaced fingertip of a robot hand is deformable and can grasp an object of complicated form rather easily, since the contact area can be enlarged by surface deformation in response to the object form. Soft-surfaced fingertips are very effective in grasping soft objects; even tofu can be grasped. Generally, however, the surface friction of soft material is high, which makes releasing more difficult. It is also difficult to release objects to desired positions, especially in cases where the working space is narrow.


[Results]
A group led by Prof. Tetsuyou Watanabe at Kanazawa University has been conducting research on control technology for grasping objects by the fingertips of robot hands. In the present study, the group aimed to develop a friction control system. The group used the soft fingertips of a robot hand for grasping objects; releasing was accomplished by applying (injecting) a lubricant. In this study, absolute ethanol (>99.5%) was employed as lubricant, since ethanol is chemically safe and easy to dry and since its surface tension is low.

As seen in Figure 1, a nitrile rubber film was bonded to the sides of the fingertip foundation to create a space for filling with chain saw oil to make a “fluid fingertip.” Then a silicone “texture”*1) was bonded to coat the rubber film; the material of the “texture” was a silicone sealant with slits, whose interval was 1.5 mm, perpendicular to the load direction. The slits were introduced for a large friction under a water-wet condition and for lubricant spreading. With this fluid fingertip, objects of various materials used for kitchen utensils were grasped and it was verified that, upon applying the lubricant, the friction was indeed reduced (Figure 2). The friction was reduced under both dry and wet conditions, whereas such a lubricating effect was not observed under an oily condition.

Next, a box packing task simulation was performed as shown in Figure 3. A paper box was grasped with two fluid fingertips from both sides. The “texture” described above was bonded to each fluid fingertip. Stable grasping was confirmed by putting a weight on the paper box. After removal of the weight, lubricant was injected to both fluid fingertips, which caused a downward slipping of the paper box in a rather short time (less than 2.5 s), so that the paper box packaging task was completed (Figure 3). As shown here, a “texture” of high friction was bonded to the fluid fingertip, and injecting a lubricant (here, absolute ethanol) reduced the friction. Thus, releasing and placing of an object at a desired position was accomplished by controlling the friction without moving the fingertips.


[Future prospects]
In this study, it was verified that object grasping by soft surface fluid fingertips with high friction was controllable by applying a suitable lubricant. It is, however, necessary to do more experiments under various conditions in order to apply the current controlling technology to manufacturing environments. Nonetheless, this study is expected to be a step forward for realizing work automation of, for example, grasping and releasing of objects in a narrow space.





Figure 1.

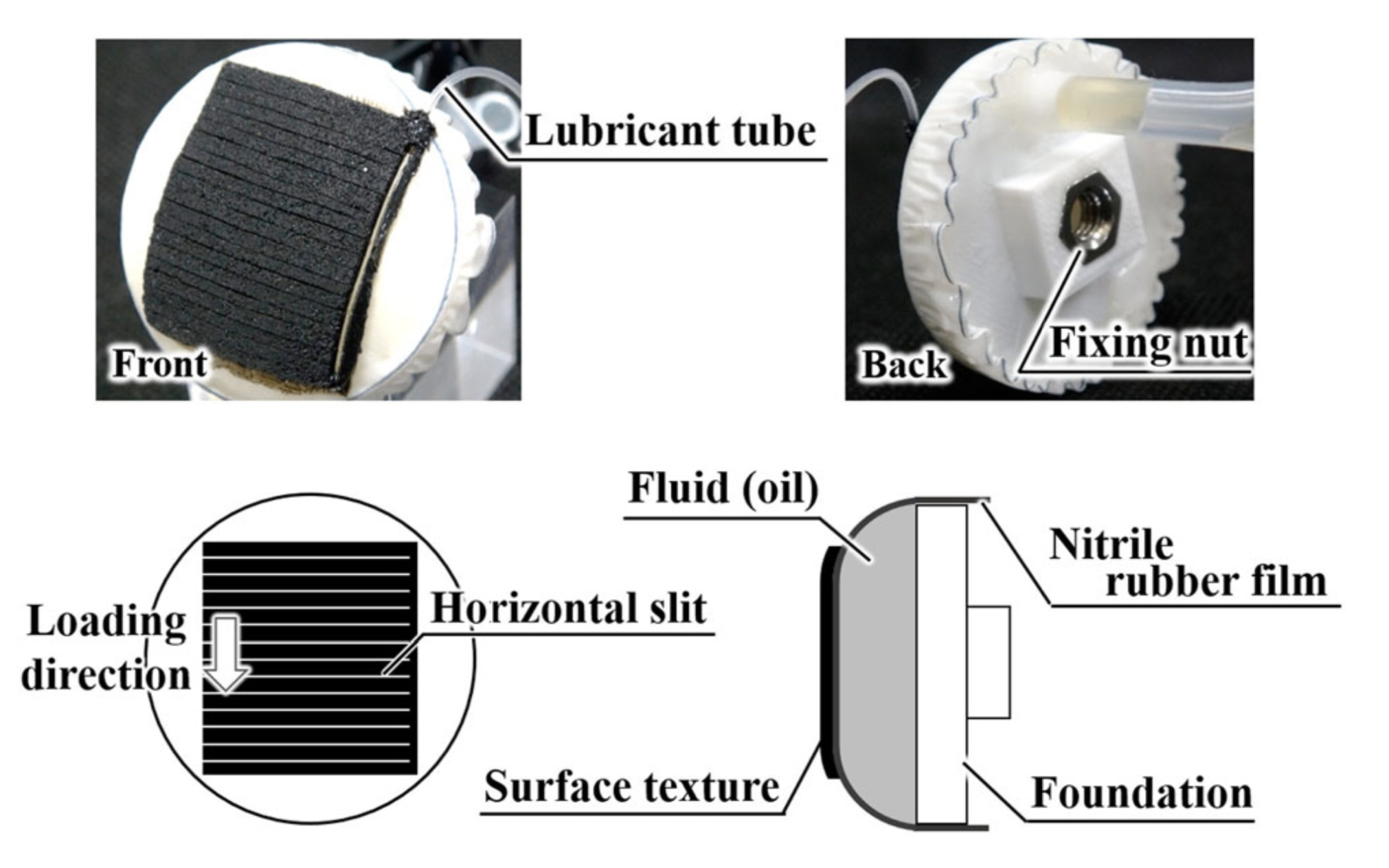

Fluid fingertip with surface texture bonded.






Figure 2.

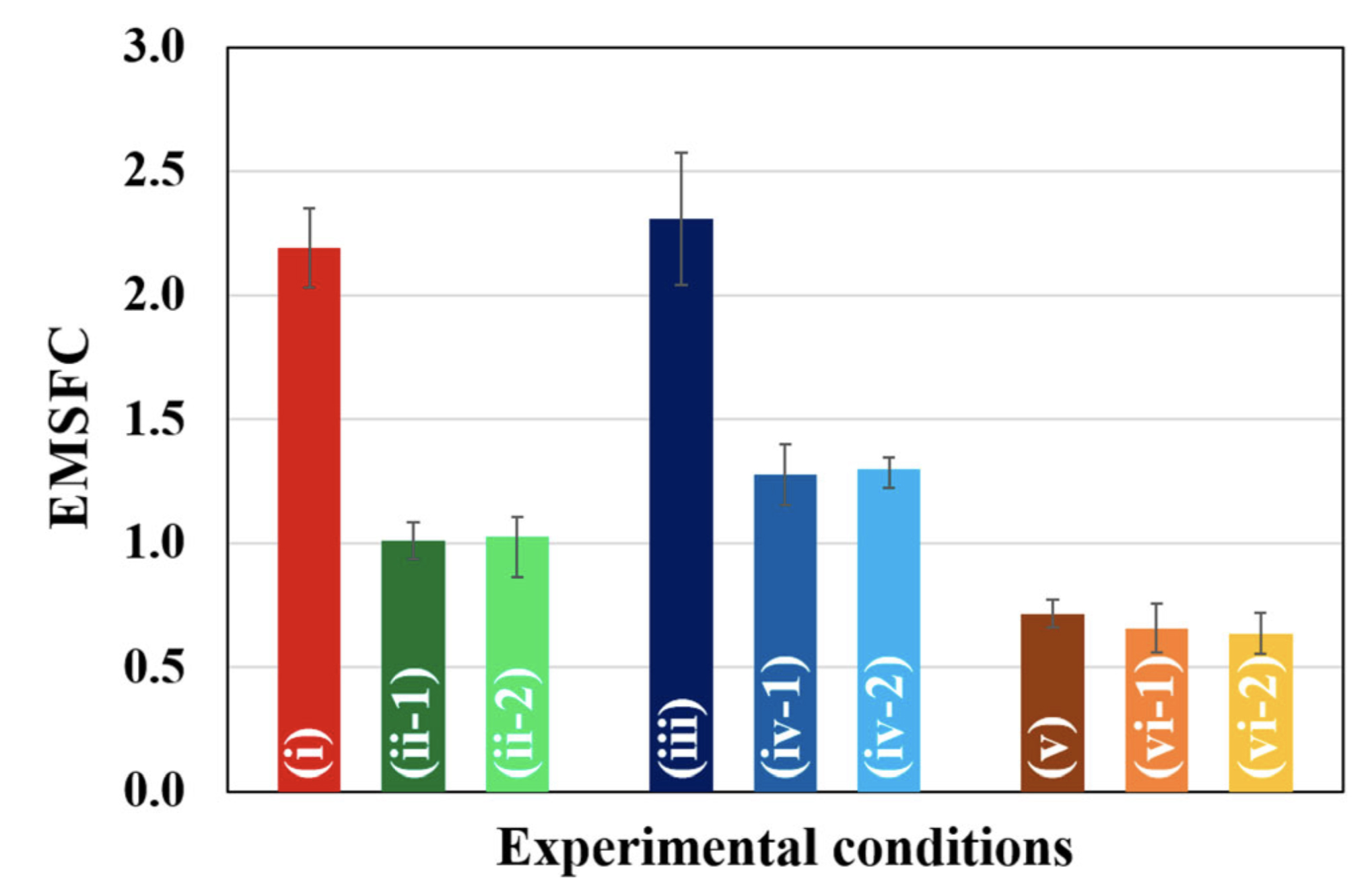

EMSFC under various experimental conditions. The target material was polypropylene. A polypropylene object was grasped by fluid fingertips shown in Figure 1, and the equivalent maximum-static friction coefficient (EMSFC)*2) was measured to reveal the effect of the lubricant. (i) dry: (ii-1) dry, lubricant injected before grasping: (ii-2) dry, lubricant injected after grasping: (iii) wet with water: (iv-1) wet with water, lubricant injected before grasping: (iv-2) wet with water, lubricant injected after grasping: (v) oily with chain saw oil: (vi-1) oily with chain saw oil, lubricant injected before grasping: (vi-2) oily with chain saw oil, lubricant injected after grasping. The effect of the lubricant, absolute ethanol, was verified under both dry and wet conditions.





Figure 3.

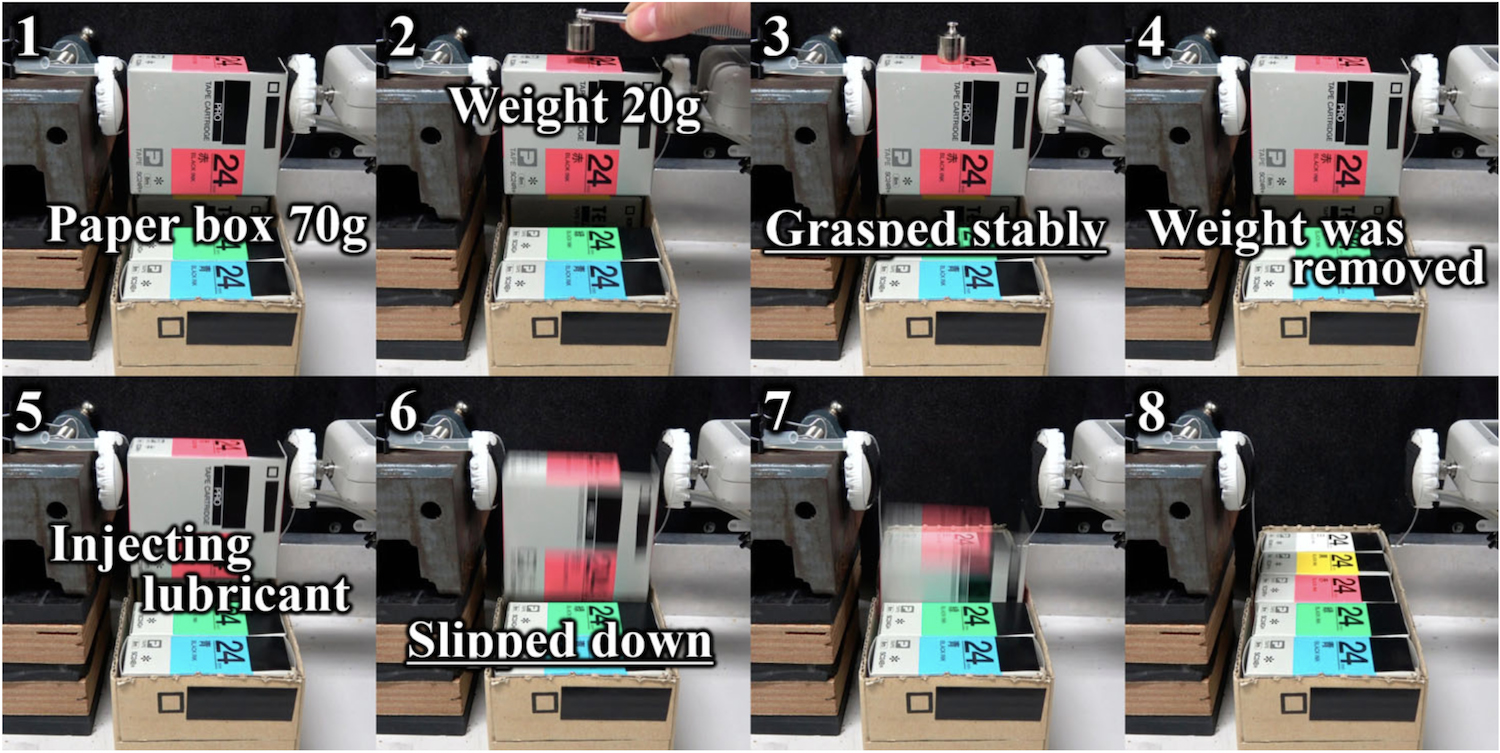

Paper box packing task simulation.   (1) A paper box (70g) was grasped by two fluid fingertips from left and right sides, (2) Placing a 20g weight on the paper box, (3) Confirming the stable grasping, (4) Removing the weight, (5) Injecting lubricant, (6) The paper box slipping downwards, (7) The paper box slipping into the lower case, (8) Completion of paper box packing.




[Glossary]
*1) Texture
Texture generally means the touch of woven materials, rocks, foodstuff and others. Here, texture signifies a planar substance, bonded on a foundation, contacting a target material.

*2) Equivalent maximum-static frictional coefficient (EMSFC)
Equivalent maximum-static frictional coefficient (EMSFC) Equivalent maximum-static frictional coefficient is the ratio of shearing force taking place between two objects in contact to the action force perpendicular to the contact surface under the static friction condition, i.e. where the two objects do not move relative to each other. It should be noted that the shearing force includes not only frictional force but also the force caused by the deformation on a deformable contact surface.
